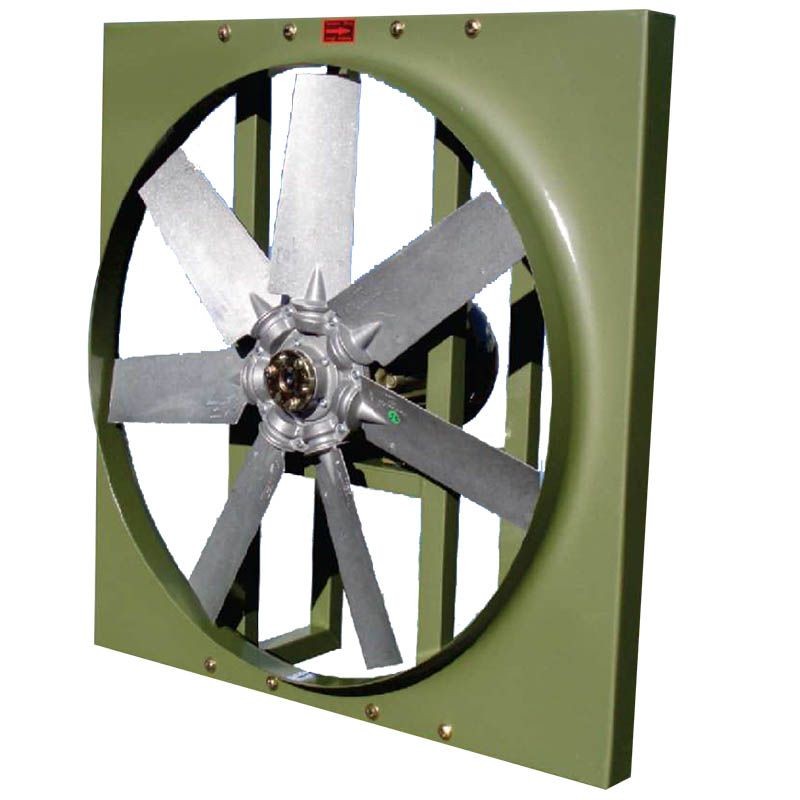

XWP/A Aero Extractor-Inyector Helicoidal

$17,481.00

Vista General Rápida

A Prueba de explosión


Modelo  XWP-4-24/20°


Precios + IVA

O

Detalles

La serie XWP/A de Aero Extractores-Inyectores helicoidales de alta eficiencia, ha sido especialmente diseñada para aplicaciones industriales, se compone de 17 modelos diferentes con2 diámetros de hélice de alabes en ángulo variable estandarizadas de 30" y 42" brindando gran variedad en caudal-presión.

Caraceristicas princiaples:
• Cuerpo y venturi en acero al carbón con acabado en pintura epoxica en polvo horneada.
• Hélice de aluminio inyectado o polipropileno reforzado con fibra de vidrio de 7 alabes en ángulo variable balanceada dinámicamente, anti-chispa, altamente resistente a la corrosión.
• Accionado por acoplamiento directo a los motores eléctricos de 4, 6 y 8 olos trifásicos diseñados bajo las especificaciones NEMA.

Aplicaciones:
Ventilación y Extracción de aire en:
• Plantas Industriales
• Bodegas
• Talleres
• Almacenes,
• Cuartos de Máquinas
• Comprensores
• Estacionamientos, etc.

nomenclatura-xwp

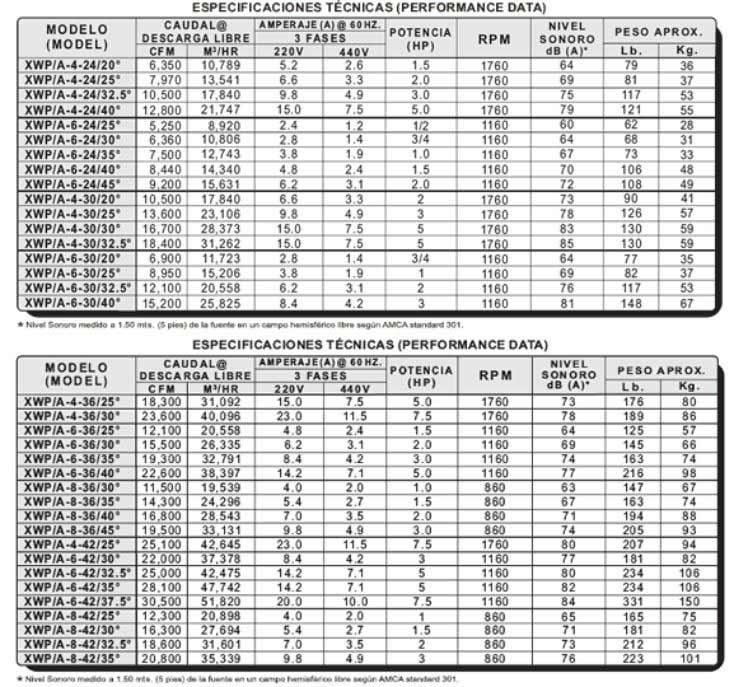

ESPECIFICACIONES TÉCNICAS



MODELO CAUDAL@
DESCARGA
LIBRE
AMPERAJE
MAX @60hz
POTENCIA
HP
RPM
Ventilador
NIVEL
SONORO
dB(A)*
PESO APROX.
3 FASES
CFM M³/HR
220 V
440 V
LB KG

XWP/A-4-30/20°

10,500

17,840

6.6

3.3

2

1760

73

90

41

XWP/A-4-30/25°

13,600

23,106

9.8

4.9

3

1760

78

126

57

XWP/A-4-30/30°

16,700

28,373

15.0

7.5

5

1760

83

130

59

XWP/A-4-30/32.5°

18,400

31,262

15.0

7.5

5

1760

85

130

59

------------------------------------------------------------------------------------------------------

XWP/A-6-30/20°

6,900

11,723

2.8

1.4

3/4

1160

64

77

35

XWP/A-6-30/25°

8,950

15,206

3.8

1.9

1

1160

69

82

37

XWP/A-6-30/32.5°

12,100

20,558

6.2

3.1

2

1160

76

117

53

XWP/A-6-30/40°

15,200

25,825

8.4

4.2

3

1160

81

148

67

XWP/A-4-42/25°

25,100

42,645

23.0

11.5

7 1/2

1760

80

207

94

------------------------------------------------------------------------------------------------------

XWP/A-6-42/30°

22,000

37,378

8.4

4.2

3

1160

77

181

82

XWP/A-6-42/32.5°

25,000

42,475

14.2

7.1

5

1160

80

234

106

XWP/A-6-42/35°

28,100

47,742

14.2

7.1

5

1160

82

234

106

XWP/A-6-42/37.5°

30,500

51,820

20.0

10.0

7 1/2

1160

84

331

150

------------------------------------------------------------------------------------------------------

XWP/A-8-42/25°

12,300

20,898

4.0

2.0

1

860

65

165

75

XWP/A-8-42/30°

16,300

27,694

5.4

2.7

1 1/2

860

71

181

82

XWP/A-8-42/32.5°

18,600

31,601

7.0

3.5

2

860

73

212

96

XWP/A-8-42/35°

20,800

35,339

9.8

4.9

3

860

76

223

101



xwp-a



PRECIOS XWP

AeroExtractor- Inyector Helicoidal
Acoplamiento Directo Hélice de polipropileno reforzado con fibra de vidrio

MODELO CAUDAL RPM POTENCIA
(HP)
P. PÚBLICO
M.N.
CFM M3/HR
XWP-4-24/20° 6,350 10,789 1.5 1,760 $ 17,481.00
XWP-4-24/25° 7,970 13,541 2 1,760 $ 17,667.00
XWP-4-24/32.5° 10,500 17,840 3 1,760 $ 18,227.00
XWP-4-24/40° 12,800 21,747 5 1,760 $ 19,400.00
XWP-6-24/25° 5,250 8,920 1/2 1,160 $ 17,413.00
XWP-6-24/30° 6,360 10,806 3/4 1,160 $ 17,546.00
XWP-6-24/35° 7,500 12,743 1 1,160 $ 19,119.00
XWP-6-24/40° 8,440 14,340 1.5 1,160 $ 19,979.00
XWP-6-24/45° 9,200 15,631 2 1,160 $ 20,112.00
XWP-4-30/20° 10,500 17,840 2 1,760 $ 18,507.00
XWP-4-30/25° 13,600 23,106 3 1,760 $ 19,093.00
XWP-4-30/30° 16,700 28,373 5 1,760 $ 19,946.00
XWP-4-30/32.5° 18,400 31,262 5 1,760 $ 20,324.00
XWP-6-30/20° 6,900 11,723 3/4 1,160 $ 16,879.00
XWP-6-30/25° 8,950 15,206 1 1,160 $ 20,031.00
XWP-6-30/32.5° 12,100 20,558 2 1,160 $ 21,069.00
XWP-6-30/40° 15,200 25,825 3 1,160 $ 23,329.00
XWP-4-36/25° 18,300 31,092 5 1,760 $ 25,212.00
XWP-4-36/30° 23,600 40,096 7.5 1,760 $ 26,784.00
XWP-6-36/25° 12,100 20,558 1.5 1,160 $ 24,973.00
XWP-6-36/30° 15,500 26,335 2 1,160 $ 25,139.00
XWP-6-36/35° 19,300 32,791 3 1,160 $ 27,396.00
XWP-6-36/40° 22,600 38,397 5 1,160 $ 28,613.00
XWP-8-36/30° 11,500 19,539 1 860 $ 26,219.00
XWP-8-36/35° 14,300 24,296 1.5 860 $ 26,590.00
XWP-8-36/40° 16,800 28,543 2 860 $ 27,603.00
XWP-8-36/45° 19,500 33,131 3 860 $ 28,184.00
XWP-4-42/25° 25,100 42,645 7.5 1,760 $ 28,061.00
XWP-6-42/30° 22,000 37,378 3 1,160 $ 28,702.00
XWP-6-42/32.5° 25,000 42,475 5 1,160 $ 29,586.00
XWP-6-42/35° 28,100 47,742 5 1,160 $ 29,974.00
XWP-6-42/37.5° 30,500 51,820 7.5 1,160 $ 36,765.00
XWP-8-42/25° 12,300 20,898 1 860 $ 27,466.00
XWP-8-42/30° 16,300 27,694 1.5 860 $ 27,857.00
XWP-8-42/32.5° 18,600 31,601 2 860 $ 28,917.00
XWP-8-42/35° 20,800 35,339 3 860 $ 29,528.00

NOTA: XW * - * - * * / * * - 3 440 - 220V/ 3F / 60 H z



PRECIOS XWA



Aero Extractor- Inyector Helicoidal
Acoplamiento Directo
Hélice de aluminio inyectado.

MODELO CAUDAL RPM POTENCIA
(HP)
P. PÚBLICO
M.N.
CFM M3/HR
XWA-4-24/20° 6,350 10,789 1.5 1,760 $ 18,565.00
XWA-4-24/25° 7,970 13,541 2 1,760 $ 18,752.00
XWA-4-24/32.5° 10,500 17,840 3 1,760 $ 19,310.00
XWA-4-24/40° 12,800 21,747 5 1,760 $ 20,482.00
XWA-6-24/25° 5,250 8,920 1/2 1,160 $ 18,537.00
XWA-6-24/30° 6,360 10,806 3/4 1,160 $ 18,672.00
XWA-6-24/35° 7,500 12,743 1 1,160 $ 20,246.00
XWA-6-24/40° 8,440 14,340 1.5 1,160 $ 21,102.00
XWA-6-24/45° 9,200 15,631 2 1,160 $ 21,235.00
XWA-4-30/20° 10,500 17,840 2 1,760 $ 19,643.00
XWA-4-30/25° 13,600 23,106 3 1,760 $ 20,226.00
XWA-4-30/30° 16,700 28,373 5 1,760 $ 21,080.00
XWA-4-30/32.5° 18,400 31,262 5 1,760 $ 21,459.00
XWA-6-30/20° 6,900 11,723 3/4 1,160 $ 19,562.00
XWA-6-30/25° 8,950 15,206 1 1,160 $ 21,208.00
XWA-6-30/32.5° 12,100 20,558 2 1,160 $ 22,246.00
XWA-6-30/40° 15,200 25,825 3 1,160 $ 24,505.00
XWA-4-36/25° 18,300 31,092 5 1,760 $ 26,288.00
XWA-4-36/30° 23,600 40,096 7.5 1,760 $ 27,861.00
XWA-6-36/25° 12,100 20,558 1.5 1,160 $ 26,126.00
XWA-6-36/30° 15,500 26,335 2 1,160 $ 26,291.00
XWA-6-36/35° 19,300 32,791 3 1,160 $ 28,548.00
XWA-6-36/40° 22,600 38,397 5 1,160 $ 29,739.00
XWA-8-36/30° 11,500 19,539 1 860 $ 27,339.00
XWA-8-36/35° 14,300 24,296 1.5 860 $ 27,717.00
XWA-8-36/40° 16,800 28,543 2 860 $ 28,727.00
XWA-8-36/45° 19,500 33,131 3 860 $ 29,307.00
XWA-4-42/25° 25,100 42,645 7.5 1,760 $ 29,190.00
XWA-6-42/30° 22,000 37,378 3 1,160 $ 29,881.00
XWA-6-42/32.5° 25,000 42,475 5 1,160 $ 30,761.00
XWA-6-42/35° 28,100 47,742 5 1,160 $ 31,154.00
XWA-6-42/37.5° 30,500 51,820 7.5 1,160 $ 37,941.00
XWA-8-42/25° 12,300 20,898 1 860 $ 28,641.00
XWA-8-42/30° 16,300 27,694 1.5 860 $ 29,036.00
XWA-8-42/32.5° 18,600 31,601 2 860 $ 30,096.00
XWA-8-42/35° 20,800 35,339 3 860 $ 30,703.00

NOTA: XW * - * - * * / * * - 3 440 - 220V/ 3F / 60 H z

Precios + IVA
